Mario in 20KB: How 8 Worlds and 32 Levels Fit Into a Tiny Footprint

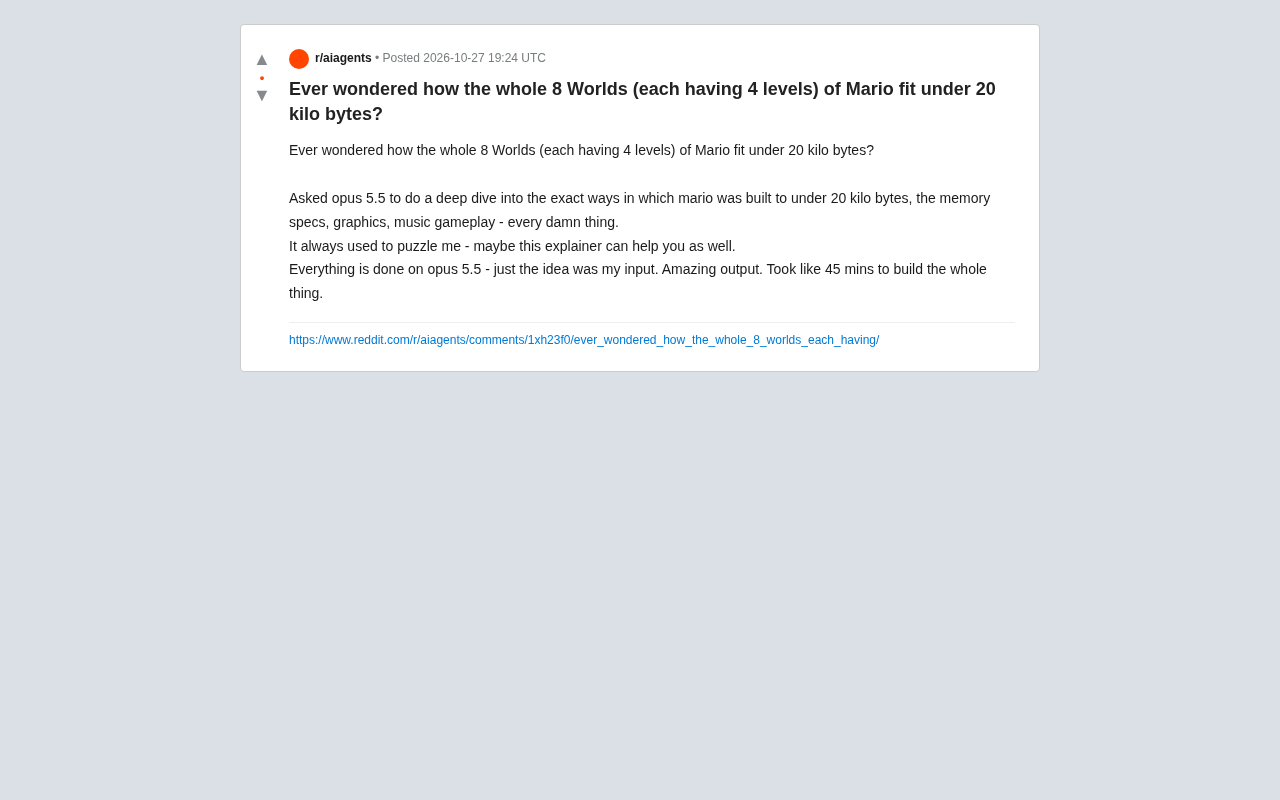

A post from Reddit raised a question that stumped many players and developers alike: the entire Super Mario Bros.—8 worlds, 4 levels each—was crammed into under 20KB. The poster said they'd always been puzzled by this, so they had the AI model Opus 5.5 do a deep breakdown covering memory specs, graphics, music, gameplay, and everything in between. The whole output took about 45 minutes, with just one idea as human input.

The value of this case isn't just nostalgia. It puts two eras of technical philosophy side by side: the engineering creativity born from extreme constraints, and the current efficiency frontier of AI-assisted content production.

Why 20KB Deserves Repeated Discussion

Today a single phone photo easily exceeds 20KB in magnitude, yet a game that defined an entire platforming genre had to fit all its levels, characters, enemies, and sound into that same space. This contrast is the starting point of the discussion.

According to the original Reddit post, Opus 5.5's breakdown wasn't vague—it dug into specific implementation details: how memory layout was compressed, how graphics were saved, how music expressed complete melodies with minimal resources, and how gameplay logic compromised with hardware limits. The poster emphasized that all content was produced by the model, with themselves only contributing the idea.

This raises a question worth developers' attention: when we're no longer constrained by 20KB, do we still retain that sensitivity to every byte?

The storage specifications of the Nintendo Entertainment System (NES) are the key premise for understanding this number. Super Mario Bros. was released in 1985 on the NES, with cartridges using ROM chips to store programs and assets. The initial cartridge capacity was about 40KB, with 32KB for program ROM (PRG) and 8KB for graphics ROM (CHR). The game's actual usable level, character, enemy, and music data had to squeeze into a total budget of about 40KB, and the "under 20KB" discussed typically refers to the data actually used for levels and assets after excluding fixed engine code. The NES CPU is a variant of the 8-bit 6502 running at about 1.79MHz, with only 2KB of RAM, and graphics rendered as tiles via the PPU (Picture Processing Unit). This means assets weren't stored as complete frames, but organized as 8×8 pixel tiles and palette indices, with repeated tiles heavily reused. Understanding this hardware constraint is necessary to grasp why "every byte" was a real physical limit back then, not just rhetoric.

From Memory to Graphics: The Engineering Approach of Extreme Compression

The original post didn't disclose the full breakdown details, but several core threads can be reconstructed from the question itself. The structure of 8 worlds with 4 levels each means a large amount of level data had to be organized in a tiny space; character animations, enemy behaviors, bricks, and terrain all needed to share resources.

The essence of this design approach is reuse and encoding: graphics assets that can be shared aren't stored repeatedly, animations that can be generated procedurally don't have pre-stored frames, and level data is expressed in a compact encoding. The reason graphics and music could coexist within the same budget relies on precise utilization of hardware characteristics, not brute-forcing storage capacity.

For today's developers, this methodology isn't outdated. Embedded development, edge devices, and game jam projects still face similar constraints, and the habit of "thinking clearly about where every byte goes" often saves significant time during performance optimization.

The tile and tileset mechanism is the core of how Mario's graphics could represent rich scenes in a tiny space. The NES PPU doesn't store complete frames; instead, it divides the screen into 8×8 pixel tiles, each rendered with 4 colors from a palette. The game only needs to store a limited set of tile patterns (bricks, ground, clouds, character parts) in CHR ROM, then use "nametables" to record which tile number is used at each screen position. The same cloud or brick appearing repeatedly across different levels costs almost nothing in storage. Character animations are similarly split by parts: Mario's body, hat, and arms are stored as separate tiles, combined and flipped to generate different poses. This "pattern library + index reference" approach is in the same lineage as modern game atlases and instanced rendering, and is a key layer in understanding how "20KB holds all levels."

Procedural generation and compact level encoding is another main thread. Mario's levels aren't stored pixel by pixel but encoded as "object lists": each object (brick, pipe, enemy spawn point, coin) is described with a few bytes for its type and screen coordinates, and the engine generates the scene column by column as the camera scrolls. Enemy behaviors are also driven by simple state machines rather than pre-stored animation frames. For music, the NES APU provides several square wave, triangle wave, and noise channels, and the game only stores note sequences and duration commands, with the hardware synthesizing melodies in real time rather than recorded audio samples. These three points—tile reuse, object-based level encoding, and hardware-synthesized music—together explain why the content volume far exceeds the storage budget. They are all essentially "trading computation for storage," a trade-off that still holds in today's procedural generation and compression algorithms.

What AI Deep Breakdown Offers and What It Lacks

The poster spoke highly of Opus 5.5's output, calling it "amazing output" and believing the explainer could help others who are similarly confused. This reflects a real advantage of AI in knowledge integration tasks: quickly organizing a topic scattered across hardware documents, reverse engineering, and oral history into a coherent explanation.

However, AI-generated content from a single source has verification gaps. The original post didn't list sources or specify which conclusions came from actual testing versus inference. Readers using it as a technical explanation would be wise to cross-check against hardware manuals or established reverse engineering materials. AI excels at building narrative frameworks, but when it comes to byte-level facts, human oversight is still needed.

This is also a typical form of current AI-assisted content production: ideas come from humans, drafts are completed by models, and value depends on the depth of subsequent verification.

The Production Function Shift Behind 45 Minutes

The original post mentioned the entire build took about 45 minutes. The significance of this duration isn't about speed itself, but about a new division of labor: humans propose a good question, and the model handles information gathering, structuring, and expression.

In the past, producing a technical explanation of comparable depth required consulting multiple sources, organizing notes, and repeatedly revising structure—taking days or weeks. Now the bottleneck has shifted from "writing" to "asking" and "verifying." Proposing a question worth digging into is scarcer than generating answers; judging whether generated content is reliable takes more effort than producing it.

For content creators and developers, this means the center of competitiveness is moving: those who can ask more precise questions and establish stricter verification processes will get higher output quality from the same tools.

Conclusion

8 worlds, 4 levels each, under 20KB—this contrast continues to fascinate because it concretizes creativity under engineering constraints. The Reddit poster's approach of using an AI model for a deep breakdown connects this old topic to a new mode of production. Viewed together, the conclusion is clear: constraints force out design wisdom, and tools change the speed at which wisdom is produced, but the responsibility for verification always remains on the human side.
