Monocular Depth Estimation on Raspberry Pi 4: Is DINO + Depth Anything V2 Viable?

Limited Budget: Can Monocular Depth Estimation Power a Vineyard Spraying Robot?

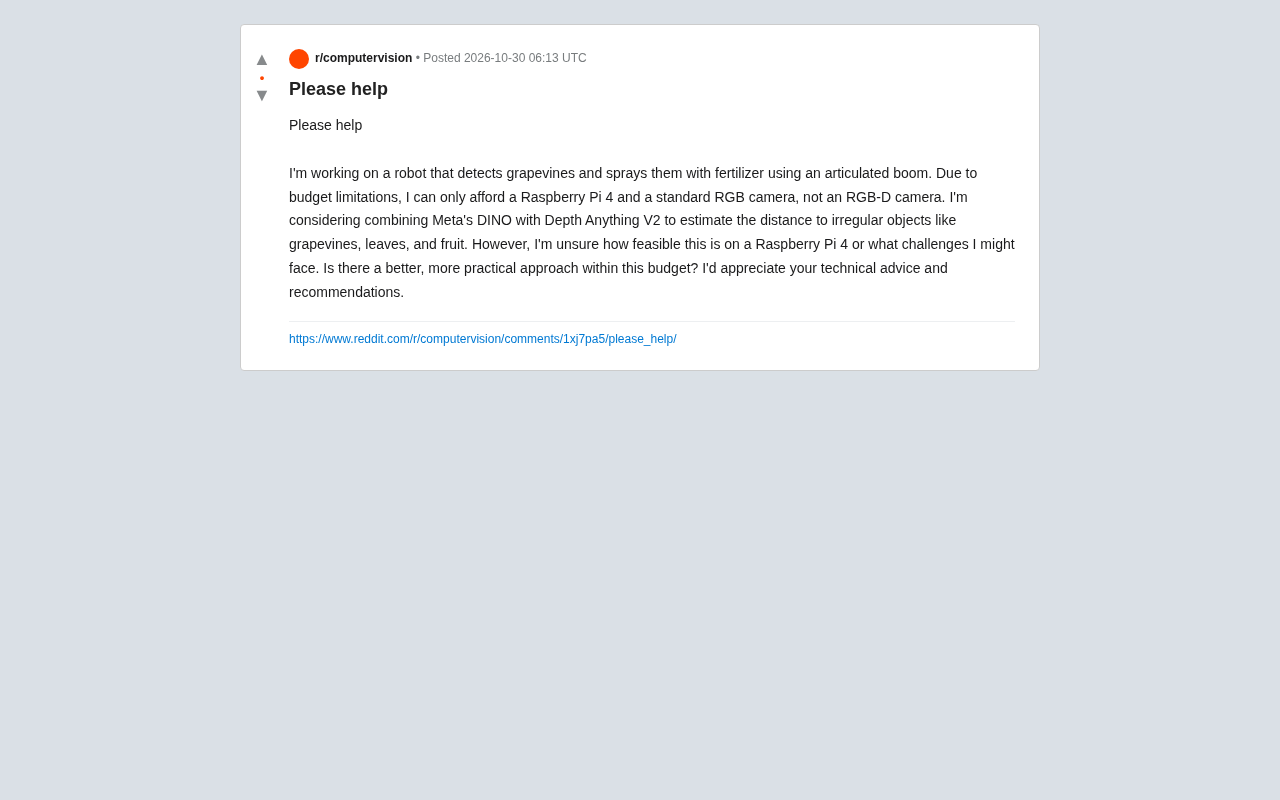

In a technical help post on Reddit, a developer is building a robot for vineyard operations: it needs to identify grapevines and precisely spray fertilizer using an articulated boom. Due to budget constraints, he can only use a Raspberry Pi 4 and a standard RGB camera, and cannot afford an RGB-D camera. He is considering combining Meta's DINO with Depth Anything V2 to estimate the distance to irregular objects such as vines, leaves, and fruit, but is unsure whether this is feasible on a Raspberry Pi 4 and what challenges it would entail.

The essence of this question is: how difficult is it, really, to achieve sufficiently reliable depth perception using monocular vision on a low-cost embedded computing platform?

Why RGB-D Cameras Aren't the Only Solution—But Monocular Ranging Isn't Easy Either

RGB-D cameras (such as the RealSense series) directly output depth maps, saving a great deal of computation, but their price often exceeds the budget of hobbyist or small-scale agricultural projects. Monocular depth estimation relies entirely on algorithms to infer distance from a single image; it is low-cost but inherently limited in accuracy and stability.

Depth Anything V2 is a relatively recent work in the field of monocular depth estimation. Trained on large-scale data, it can generate relatively dense depth maps for general scenes. The idea of combining it with DINO is to first use DINO to detect or segment target regions such as vines, leaves, and fruit, then read the depth values from Depth Anything V2 on the corresponding regions to obtain target distances. This "detection + depth" cascaded approach is theoretically feasible, but when actually deployed on a Raspberry Pi 4, computational resources become the primary bottleneck.

Monocular depth estimation refers to inferring the distance from each pixel to the camera using only a single RGB image. Because a single image loses true scale information, models typically output only relative depth (which is nearer and which is farther), not absolute metric distance. To obtain absolute distance, external priors such as known camera height, the ground plane, or the true size of objects are often needed for calibration. Mainstream approaches fall into two categories: regression-based networks that directly predict depth maps, and generative or diffusion-based models. Depth Anything V2 belongs to the former; its core is large-scale pretraining on massive synthetic and real data, followed by distillation to obtain model variants of different sizes. Thus within the same family there are both large models suited to servers and small models aimed at edge devices.

DINO (here broadly referring to Meta's DINO/DINOv2 self-supervised vision backbones) is a visual Transformer feature extractor trained through self-distillation. It does not come with a detection head itself, but its features are of high quality and can be transferred to downstream tasks such as segmentation, detection, and matching without requiring large amounts of annotation. Cascading DINO with a depth model essentially means using the former to provide semantic masks and the latter to provide geometric depth; the two are complementary. The cost is that both networks must run inference, so memory and latency add up—this is precisely the key trade-off when deploying at the edge.

Real-World Challenges on the Raspberry Pi 4

Compute and Memory Constraints

The Raspberry Pi 4 has limited CPU performance and no powerful GPU acceleration. Even the smaller variants of Depth Anything V2 require considerable floating-point operations for inference. Running the full model directly on a Raspberry Pi 4 would likely yield a frame rate far too low to meet the demands of real-time spraying. In terms of memory, model loading and image processing also consume the already tight memory space.

The Raspberry Pi 4 is equipped with a quad-core Cortex-A72 (clocked at roughly 1.5–1.8 GHz), typically 2/4/8 GB of memory, and a VideoCore VI GPU that supports only OpenGL ES 3.x and lacks CUDA or general-purpose matrix acceleration units. This means deep learning inference relies mainly on the CPU, or on lightweight inference frameworks with INT8 quantization; its compute is roughly in the single-digit to low-teens GFLOPS range, two to three orders of magnitude below desktop GPUs. For reference, a Transformer with tens of millions of parameters often requires hundreds of milliseconds to several seconds for single-frame inference on a Raspberry Pi 4.

Therefore, when assessing feasibility, attention should be paid to three variables: model parameter count, input resolution, and whether quantization is used. Lowering input resolution can significantly reduce computation but loses edge precision on slender vines; INT8 quantization can speed things up severalfold but may introduce bias in depth values. In engineering practice, one typically first exports the model with ONNX Runtime or TFLite and checks operator compatibility, then measures end-to-end latency empirically, rather than judging solely from paper metrics.

Accuracy Issues in Depth Estimation

Monocular depth estimation outputs relative depth, not absolute distance. In agricultural scenes, grapevines have complex morphology, severe leaf occlusion, and large lighting variations; the generalization ability of Depth Anything V2 on general data may not transfer directly to vineyards. In addition, depth maps tend to blur at object edges and slender structures (such as vines), whereas spraying precisely needs to know the distances to these irregular surfaces.

The difference between relative depth and absolute distance is the core obstacle to deployment in agricultural scenes. After normalization, the same object may map to different values under different lighting and shooting distances, and the model itself does not know how many output units correspond to "1 meter." Common remedies include: using the known camera mounting height and pitch angle, combined with ground-plane fitting, to back-project relative depth into 3D; or placing a calibration board of known size on the boom and performing a scale calibration before each operation.

In addition, edge blur arises because depth models mostly apply smoothing constraints over the whole image, so depth differences between slender structures (vines, petioles) and the background are easily averaged away. For spraying, the depth boundary between leaves and background is precisely what determines whether a nozzle opens. Feasible mitigation includes increasing input resolution, applying local median filtering within the target mask, or using segmentation edges to guide filtering of the depth map—but all of these increase computation, requiring a trade-off between accuracy and frame rate.

Real-Time Performance and the Control Loop

A spraying robot needs to adjust boom posture and spray volume in real time based on distance. If depth estimation latency is too high, the control loop becomes sluggish and may even cause missed or excessive spraying. Running a two-model pipeline of DINO plus Depth Anything V2 on a Raspberry Pi 4, latency is likely to be a critical weakness.

More Pragmatic Alternatives

Model Lightweighting and Hardware Acceleration

One can try distilling or quantizing Depth Anything V2 into smaller versions, or use Raspberry Pi-compatible inference frameworks (such as ONNX Runtime or TFLite) for optimization. Some community projects have already attempted to run lightweight depth models on the Raspberry Pi, but frame rate and accuracy need to be tested in practice.

Using Geometric Priors to Replace Part of the Depth Computation

If the robot's camera mounting height and angle are fixed, one can use the ground-plane assumption and homography transformation to project points in the image onto the ground coordinate system, thereby estimating target distance. This method is computationally cheap and suitable for structured scenes, but has limited accuracy for non-ground targets (such as fruit high up).

A Cheap Active Ranging Solution

Add a low-cost laser rangefinder module or ultrasonic sensor to the boom to directly measure the distance to the vines, combined with visual identification of target positions. Although this adds hardware, the cost is far below that of an RGB-D camera, and ranging accuracy is more reliable.

Low-cost laser ranging modules (such as ToF-based VL53L series or short-range triangulation laser modules) typically cost from a few yuan to a few dozen yuan, with ranges from tens of centimeters to several meters, accuracy down to the millimeter level, and output as absolute distance unaffected by lighting or texture. Their limitation is a very narrow field of view: they can measure only a single point or a small area, and need to be combined with a pan-tilt unit or linked with visual target positions to cover the entire boom width; some ToF modules also saturate under strong sunlight.

Ultrasonic sensors (such as HC-SR04) are even cheaper, but have a wide beam angle and are susceptible to interference from wind and leaf reflections, with accuracy at the centimeter level—better suited as coarse obstacle avoidance or safety-distance redundancy. A common engineering combination is: vision decides "where to spray," while a single-point laser decides "how far to spray," with simple temporal fusion of the two. This avoids both the high cost of RGB-D cameras and the scale ambiguity of monocular depth.

Segmentation First, Depth Later

If the spraying decision depends mainly on whether a target exists rather than on precise distance, one can first use a lightweight segmentation model (such as DeepLab with a MobileNet backbone) to identify vine regions, then combine the geometric relationship of the fixed boom for coarse distance estimation, using depth estimation only as an auxiliary signal.

Conclusion: Feasible, but with Compromises

Combining DINO with Depth Anything V2 for vine ranging on a Raspberry Pi 4 is technically sound in principle, but direct deployment under current hardware conditions would face multiple challenges in compute, memory, real-time performance, and accuracy. A more realistic path is: choose a lightweight depth model variant, combine it with geometric priors or low-cost active sensors, and reduce the depth estimation frequency to a level that matches spray control. For budget-sensitive agricultural robotics projects, monocular depth estimation can serve as part of perception, but it should not bear the entire responsibility for precise ranging on its own.

This Reddit help post did not provide follow-up empirical data, so the above analysis is based on publicly available model characteristics and the hardware specifications of the Raspberry Pi 4. If you have specific frame-rate or accuracy requirements, it is advisable to first run the smallest variant of Depth Anything V2 on the Raspberry Pi 4, measure actual inference time, and then decide whether to introduce DINO or switch to another approach.

One-line Summary

DINO + Depth Anything V2 ranging on Raspberry Pi 4 is feasible in principle, but requires compromises in compute, accuracy, and real-time performance.

Paragraph Summary

The article centers on a developer who wants to build a vine-spraying robot on a limited budget using a Raspberry Pi 4 and a standard RGB camera, and evaluates the feasibility of cascading DINO with Depth Anything V2 for monocular ranging. The analysis points out that the approach is sound in principle, but the Raspberry Pi 4 lacks GPU acceleration, and a two-model pipeline struggles to meet the compute, memory, and latency demands of a real-time spray control loop; meanwhile, monocular depth outputs only relative depth and lacks accuracy under leaf occlusion, lighting changes, and at the edges of slender vines. The article accordingly proposes four more pragmatic paths: model lightweighting and quantized inference, exploiting geometric priors such as the ground plane, adding low-cost laser or ultrasonic active ranging, and prioritizing segmentation while deferring depth. The conclusion is that monocular depth can serve as part of perception but should not bear precise ranging alone, and it is recommended to first measure the inference time of the smallest variant before deciding on an approach.
