Open-Source Quadruped Robot Motion Control Breakthrough: MPC/WBC Framework in Practice

Open-Source Quadruped Robot Sees New Motion Control Advances

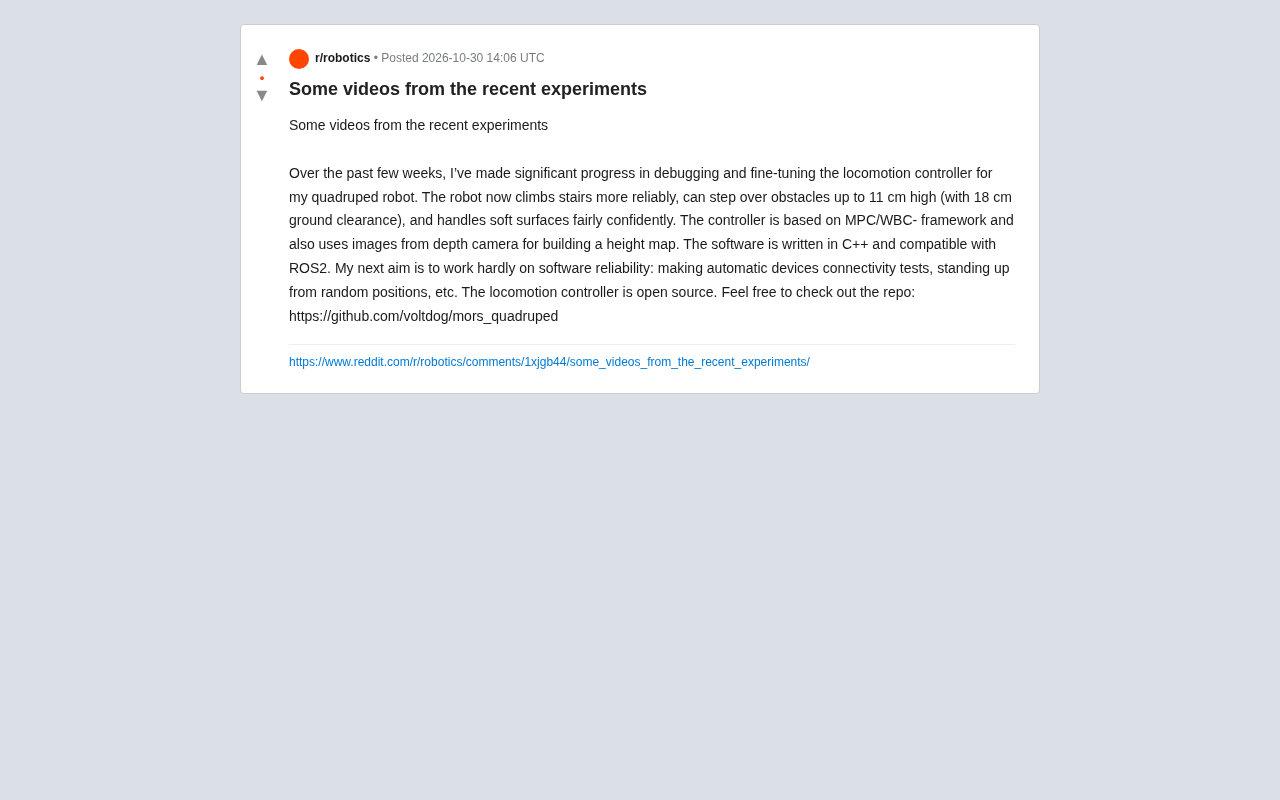

A developer recently shared the latest experimental results of their quadruped robot project on Reddit. After weeks of debugging and fine-tuning, the robot's motion controller performance has significantly improved, showing more reliable behavior in stair climbing, obstacle negotiation, and soft terrain adaptation. This progress not only demonstrates the potential of the MPC/WBC framework for legged robots but also provides valuable reference for the open-source robotics community.

Controller Architecture: MPC/WBC with Depth Camera Fusion

The motion controller is built on the MPC (Model Predictive Control) and WBC (Whole-Body Control) frameworks, and incorporates depth camera data to construct elevation maps. This design enables the robot to perceive terrain changes in real time, adjusting its gait and footholds accordingly. The software is written in C++ and compatible with ROS2, making it easy to integrate into existing robotic systems.

The developer emphasizes that the core of the controller lies in using elevation maps for terrain assessment, with MPC generating optimized motion trajectories and WBC ensuring whole-body motion coordination. This hierarchical architecture is common in legged robots, but open-source implementations are rare, especially those combining depth cameras for real-time terrain perception.

MPC (Model Predictive Control) is an optimization-based control method that relies on a system dynamics model. In each control cycle, it solves an optimal control problem over a finite horizon, producing a sequence of future control inputs, but only executes the first input before rolling to the next time step and re-solving. This receding-horizon optimization mechanism allows MPC to explicitly handle constraints (such as joint torque limits and friction cone constraints) and provides look-ahead capability, making it highly suitable for legged robots that need to anticipate footholds and forces several steps ahead.

WBC (Whole-Body Control) is a control framework that coordinates all robot joints at the task-space level. It organizes multiple tasks (such as torso orientation maintenance, foot trajectory tracking, and swing leg obstacle avoidance) into a hierarchical optimization problem by priority, solving for desired joint torques or accelerations while satisfying dynamics and contact constraints. MPC generates macro-level motion trajectories and contact sequences, while WBC handles low-level high-frequency torque distribution and coordination—this layered combination is currently the mainstream paradigm in legged robot control.

Elevation Map is a 2D terrain height representation formed by projecting depth camera point clouds onto a horizontal grid. Each grid cell stores the estimated ground height at that location, commonly used for foothold evaluation and terrain traversability analysis in legged robots. Compared to raw point clouds, elevation maps have smaller data volume and regular structure, making them easy to update and query in real time, and can directly provide terrain constraints to MPC (e.g., avoiding placing feet on cells that are too high or too steep). Depth cameras are limited by lighting, reflective materials, and long-range accuracy, so they typically need to be fused with IMU and leg kinematics estimates to improve elevation map robustness in scenarios such as stair edges and soft terrain.

Experimental Performance: Stairs, Obstacles, and Soft Terrain

According to the share, the robot can now climb stairs more reliably, negotiate obstacles up to 11 cm high (with 18 cm ground clearance), and handle soft terrain with reasonable confidence. These capabilities are crucial for quadruped robots navigating real-world environments.

You may not have noticed, but the developer did not disclose specific success rate data. However, from descriptions like "more reliable" and "reasonably confident," the performance improvement is clearly significant. Stair climbing and obstacle negotiation are classic challenges in the legged robotics field, involving tight coupling of perception, planning, and control. This progress indicates that the MPC/WBC framework combined with visual perception can reach practical levels on real hardware.

Ground clearance and obstacle negotiation height are two different metrics. Ground clearance typically refers to the height of the robot's torso bottom (or lowest point of the body) above the ground during normal standing, reflecting its geometric potential for passing through low spaces and stepping over obstacles; obstacle negotiation height refers to the maximum height of an obstacle that the robot can lift its legs over and stably land on. A quadruped robot's obstacle negotiation depends not only on leg lift height but also on the perception system's ability to accurately identify obstacle contours, MPC's ability to plan appropriate footholds, and WBC's ability to maintain torso balance during single-leg support phases. The 11 cm obstacle negotiation with 18 cm ground clearance indicates that this robot has good obstacle clearance margin among medium-sized quadruped platforms.

Future Directions: Software Reliability and Automated Testing

The developer states that the next step will focus on improving software reliability, including implementing automated device connection testing and standing up from random positions. These efforts aim to make the robot system more robust and reduce manual intervention.

Automated connection testing and standing from random positions are key steps toward practical robot deployment. The former ensures that all components communicate properly during system startup, while the latter requires the robot to recover to a standing position from any posture, placing higher demands on controller robustness.

Fall recovery is an important indicator of legged robot robustness. When the robot falls or is in a non-nominal posture, the controller needs to identify the current posture, plan a sequence of actions to right itself or push up from the ground, and maintain stability under uncertain contact conditions. This process involves state estimation (determining torso orientation and joint configuration), contact planning (choosing which legs to land first), and torque control (avoiding joint limits or self-collision in constrained spaces). Implementing fall recovery typically requires an additional recovery strategy state machine that switches with the regular walking controller, and is an essential capability for robots transitioning from the lab to field operations.

Open Source and Community Collaboration

The motion controller is open source, with the code repository on GitHub (voltdog/mors_quadruped). The developer invites community members to review and contribute. Open source is crucial for robotics development, allowing researchers to reproduce results, accelerate iteration, and promote the spread of best practices.

Judging from community reactions, such open-source projects often attract more developers to participate, creating a virtuous cycle. Although the project may still be in the experimental stage, its architecture and implementation approach offer reference value for teams working on quadruped robot research.

Conclusion

The quadruped robot motion control progress shared here demonstrates the effectiveness of combining the MPC/WBC framework with depth cameras on real hardware. With further improvements in software reliability, this open-source project is poised to become an important tool for quadruped robot research. Interested developers should keep an eye on its GitHub repository for the latest updates.

One-line Summary

Open-source quadruped robot combines MPC/WBC with depth camera fusion for more reliable stair climbing and obstacle negotiation.

Paragraph Summary

A developer shared the latest experimental results of their open-source quadruped robot project on Reddit. The motion controller is based on a hierarchical MPC and WBC framework, incorporating depth camera data to build elevation maps for real-time terrain perception. The software is written in C++ and compatible with ROS2. Experiments show the robot can climb stairs more reliably, negotiate 11 cm high obstacles (with 18 cm ground clearance), and adapt to soft terrain. The developer's next step is to improve software reliability, including automated device connection testing and standing up from random positions. The controller is open-sourced on GitHub (voltdog/mors_quadruped), providing a reproducible reference implementation for the legged robotics research community.
