Holocron Engine v2: Generate Robot Hardware and Firmware from a Single Sentence

From Text to a Manufacturable Robot: Holocron Engine v2 Aims to Connect the Entire Design Chain

If you've built a robot, you know the most time-consuming part is rarely any single step—it's stitching together the concept, component selection, circuits, structure, and code that are scattered across different tools. Holocron Engine v2 attempts to start from a one-sentence description and automatically walk through seven steps, from 3D form to firmware generation.

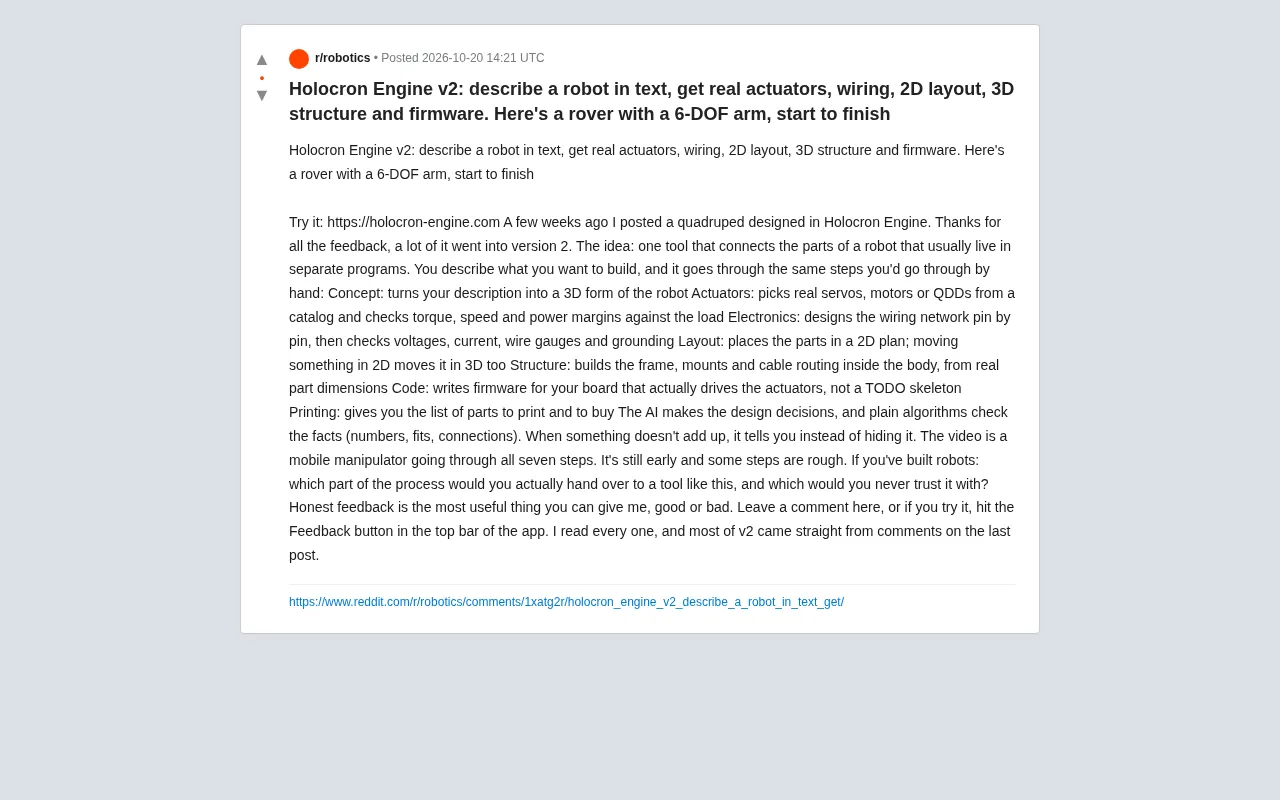

According to the original Reddit post, the core idea of this tool is: "one tool connecting robot components that are usually scattered across multiple programs." You describe what you want to build, and it proceeds step by step like a human—concept, actuators, electronics, layout, structure, code, print list. The author emphasizes that AI handles design decisions, while ordinary algorithms handle fact-checking (values, fits, connections), and "when the data doesn't add up, it tells you instead of hiding it."

The Seven-Step Pipeline: AI Decides, Algorithms Verify

Concept and Actuators: From Text to Real Hardware Selection

The first step converts the text description into a 3D form of the robot. The system then selects real servo motors, motors, or QDD actuators from a catalog and checks torque, speed, and power margins against the load. This means the output isn't "roughly use a servo" but specific models with matching calculations.

QDD stands for Quasi-Direct Drive, an actuator approach between traditional high-reduction-ratio servos and direct-drive motors. It typically uses a low-reduction-ratio planetary gearbox paired with a high-torque-density brushless motor, balancing force-control transparency with output torque, and is widely used in robots requiring compliant interaction such as quadrupeds and collaborative arms. The article lists QDD alongside servos and ordinary motors as catalog options, meaning the system must choose among the three actuator types based on each joint's load inertia, peak torque, and bandwidth requirements, rather than simply matching on rated torque. Understanding this distinction helps judge whether the selection results truly fit the specific motion conditions.

Electronics and Layout: Pin-Level Wiring and 2D/3D Linkage

The electronics step designs the wiring network pin by pin, then validates voltage, current, wire gauge, and grounding. The layout step places components into a 2D floor plan, and moving a component in 2D is reflected synchronously in 3D. This bidirectional linkage reduces the disconnect between 2D drawings and 3D models common in traditional workflows.

Wire gauge (AWG, American Wire Gauge) is a standardized numbering system for wire cross-sectional area; the smaller the number, the thicker the wire and the greater its current-carrying capacity. In robot design, wire gauge selection directly affects temperature rise, voltage drop, and mechanical flexibility under motor stall current: too thin and it heats up or even melts, too thick and it adds weight and routing difficulty. "Validating wire gauge" essentially means comparing each wire's expected current against the current-carrying and voltage-drop limits of the selected AWG. This step traditionally relies on empirical tables; if automated validation covers peak current and voltage drop from harness length, it could indeed catch a substantial number of hidden issues in advance.

Structure and Code: Real Dimensions and Drivable Firmware

The structure step builds the frame, mounts, and cable routing based on real part dimensions. The code step generates firmware for your control board that can actually drive the actuators—the original post specifically notes it's "not a TODO skeleton." Finally, it outputs a list of printed parts and purchased parts.

The video demonstrates a mobile robot with a 6-DOF robotic arm going through all seven steps. The author also admits it's "still early, and some steps are still rough."

The "not a TODO skeleton" claim targets the reality of many current code generation tools: they output only function skeletons with placeholder comments, and the real pin mappings, communication protocols, and kinematics conversions still need to be filled in manually. Generating drivable firmware presupposes that the system already knows the control board model, actuator communication buses (such as PWM, CAN, serial protocols), reduction ratios, and encoder resolutions, and can write these parameters into initialization and closed-loop control code. This also explains why the preceding electronics and actuator steps must be completed before the code step—firmware correctness depends heavily on the accuracy of upstream data.

Multi-Source Cross-Validation and Single-Source Information

This article is based primarily on a single source: the original Reddit post. In the post, the author mentions releasing a quadruped robot design a few weeks earlier and collecting feedback, and that many v2 improvements came directly from comments on that previous post. This is the author's own account; no independent reviews or third-party verification have been found on other platforms.

It's important to distinguish: "seven-step process," "AI decisions + algorithm validation," and "2D/3D linkage" are features explicitly stated by the author; while actual generation quality, firmware reliability, and selection rationality still lack external empirical data. At the end of the post, the author actively asks the community: which steps would you entrust to such a tool, and which would you never trust—suggesting the tool currently leans more toward assistance than fully automatic replacement.

Potential Impact on the Robot Development Workflow

In traditional robot development, mechanical, electronics, and software are often handled by different roles using different tools, with high interface-alignment costs. The value of Holocron Engine v2 isn't that any single step is especially strong, but that it uses a unified data model to connect selection, layout, structure, and firmware. If the validation algorithms are reliable enough to surface issues like insufficient torque, undersized wire gauge, or grounding errors early, it could reduce later rework.

But the risks are equally obvious: if AI design decisions lack explainability, engineers will find it hard to judge whether a selection is "reasonable" or merely "barely passes validation." The post's emphasis that "algorithms check facts" is a response to this, but the actual validation coverage and tolerance strategies still need to be tested in practice.

Positioning of an Early Tool and Community Feedback

The author calls v2 an early version and explicitly states that "some steps are rough." From a product perspective, it's more of a design assistant: helping you quickly generate a baseline proposal for discussion, which engineers then review and adjust. For individual developers and small teams, this rapid prototyping capability from description to BOM and firmware is appealing; for scenarios with strict certification requirements, automatically generated firmware and wiring are unlikely to be adopted directly in the short term.

The author says he reads every piece of feedback, and most v2 improvements came from comments on the previous post. This open iteration approach is worth watching, and it also means the current version's capability boundaries will change rapidly with community input.

Conclusion: What's Worth Watching Isn't "Full Automation" but "Full-Chain Connection"

Holocron Engine v2's ambition isn't to replace engineers but to connect the steps in robot development where information is repeatedly moved around. Whether it can deliver on the promise of "real actuators, real wiring, drivable firmware" depends on the rigor of the validation algorithms and the reviewability of the output. If you've built a robot, consider the author's question: which step would you entrust to it, and which would you never let go of?
