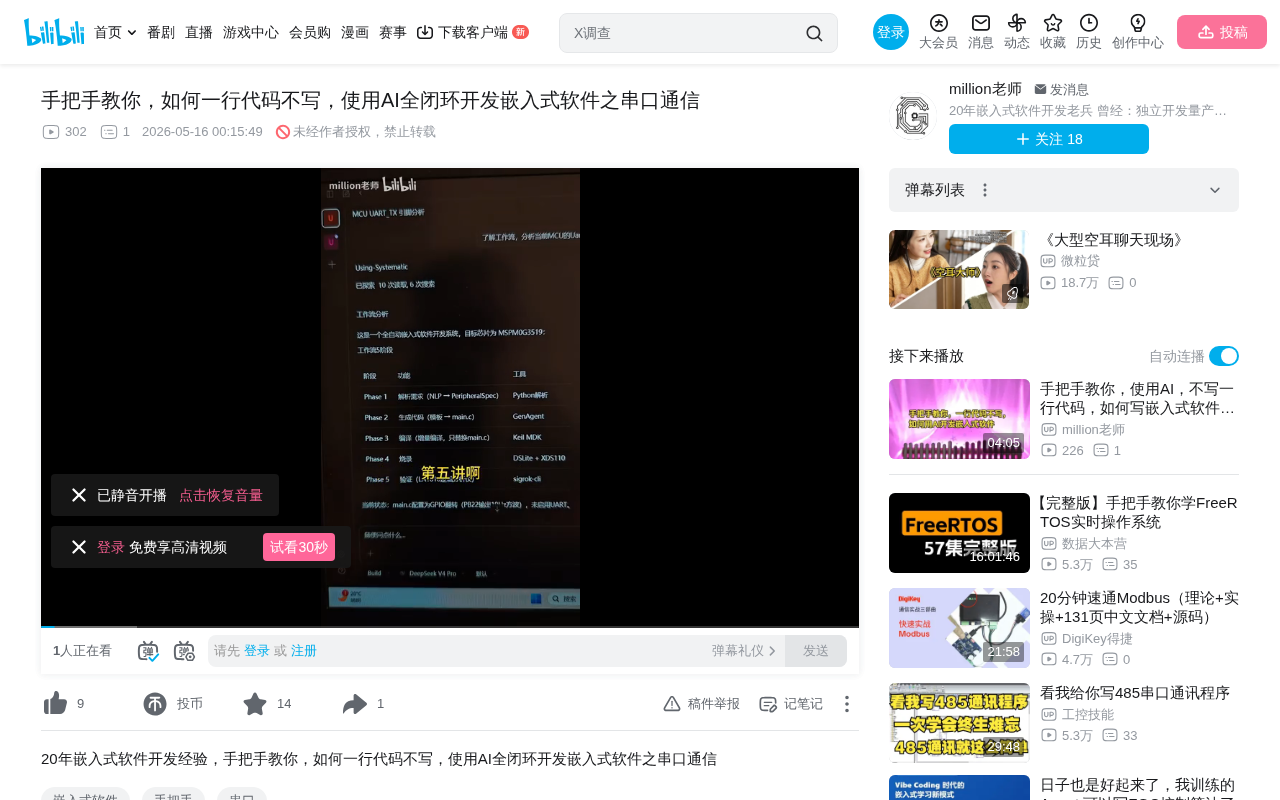

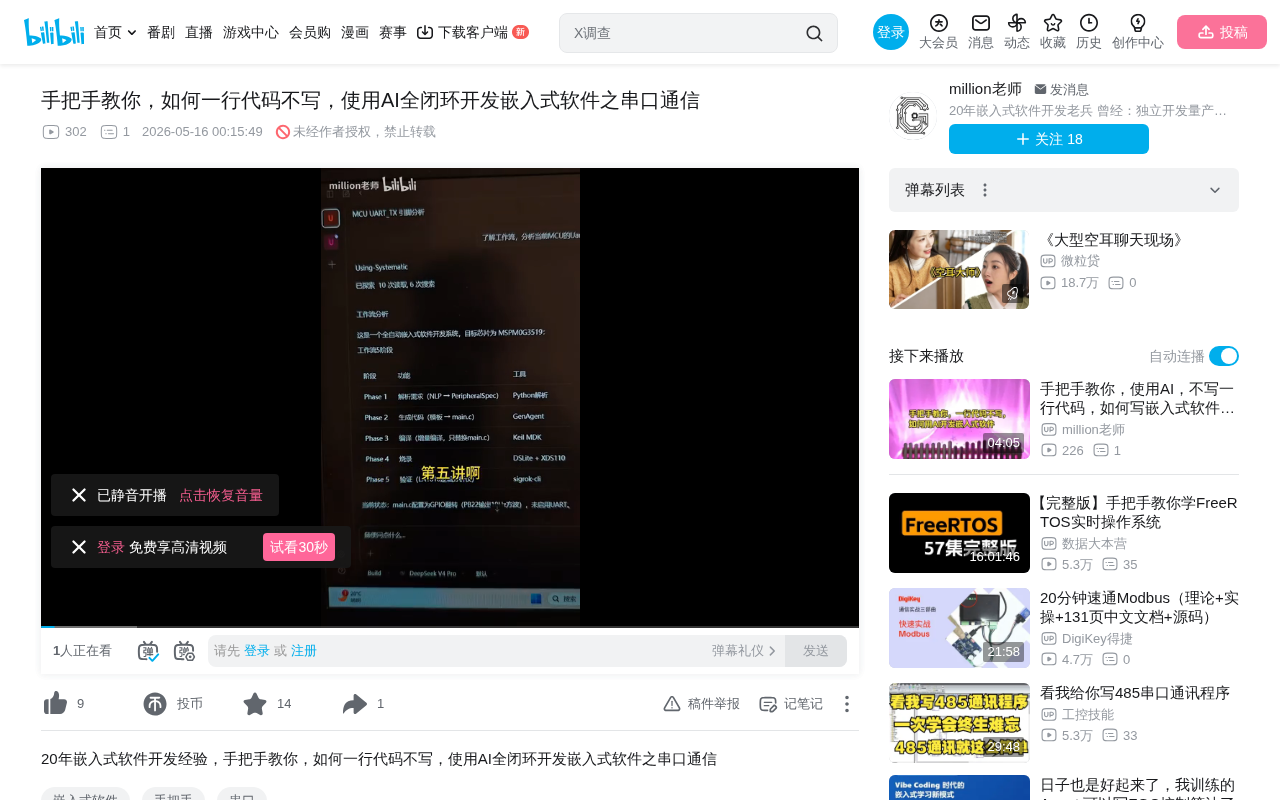

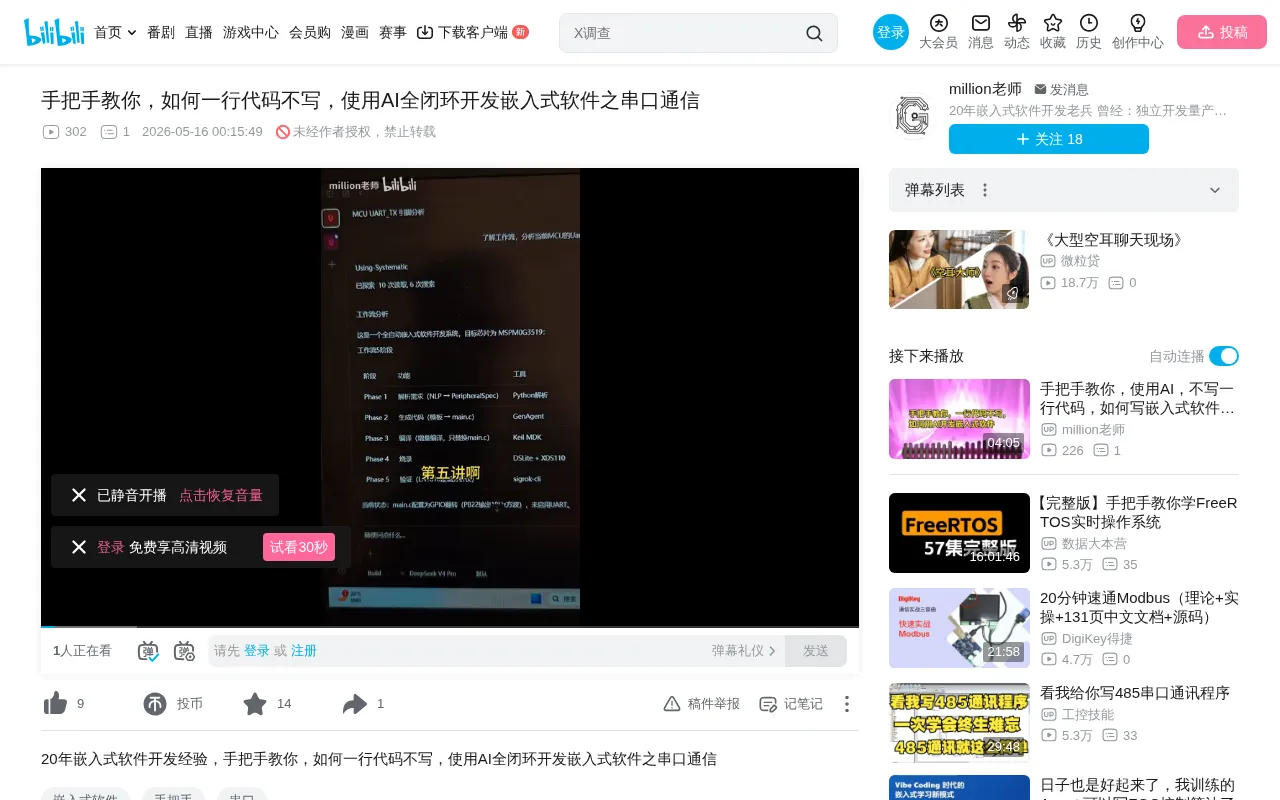

AI Full-Loop Embedded Software Development: Zero-Code UART Communication in One Minute

Introduction: A Paradigm Shift in Embedded Development

Embedded development has long been considered a high-barrier technical field — developers need to be familiar with MCU pin assignments, peripheral configurations, clock calculations, and must wade through datasheets that often span over a thousand pages. But as AI Agent capabilities advance, all of this is undergoing a fundamental transformation.

This article documents a complete hands-on case: without writing a single line of code, simply by issuing instructions to an AI Agent, a UART serial data transmission function was developed and verified in under one minute. This is the fifth installment in the series, continuing the AI full-loop development approach previously applied to GPIO, timers, and other peripherals.

UART Communication: The Universal Language of the Embedded World

UART (Universal Asynchronous Receiver/Transmitter) is one of the most fundamental and widely used communication protocols in embedded systems. It uses asynchronous communication — no clock line is needed, and bidirectional communication is achieved through just two data lines: TX (transmit) and RX (receive). The core parameters of UART communication include baud rate (bits transmitted per second), data bits (typically 8), stop bits (1 or 2), and parity bits (optional). Configuring UART in an MCU requires precise calculation of the baud rate register value, which depends on the MCU's system clock frequency. The formula is typically: BRR = fCLK / (16 × BaudRate). If the calculation is wrong, both communicating parties will fail to decode data correctly — one of the most common debugging pain points in traditional development. It is precisely this demand for precise configuration that makes UART a prime scenario where AI-assisted development can significantly boost efficiency.

Detailed AI Full-Loop UART Development Workflow

Step 1: Let AI Analyze UART Pin Assignments

In traditional development, determining the UART TX pin requires consulting the pin multiplexing table in the MCU datasheet. In the AI-assisted development model, the developer simply issues a straightforward instruction:

"Analyze which pins the current MCU's UART TX can be mapped to"

After receiving the instruction, the AI Agent automatically searches and returns results: TX pin options include PA0, PA1, PA10, among others, and recommends the most commonly used PA10. The developer doesn't need to understand the details of alternate function register configuration — they just need to make a choice.

Understanding Pin Multiplexing: Why One Pin Can Do Multiple Things

GPIO pins on modern MCUs typically support multiple Alternate Functions. Taking the common ARM Cortex-M series MCU as an example, a single physical pin may simultaneously support GPIO, UART, SPI, I2C, timer, and other peripheral functions, but only one can be selected at any given time. Developers need to configure the GPIO alternate function registers (such as STM32's AFR registers) to select the specific function. Pin multiplexing tables are usually buried within hundreds of pages of the MCU datasheet, and available pins vary across different chip packages, making pin assignment one of the most time-consuming tasks in early embedded development. AI Agents can quickly parse these multiplexing relationships, dramatically reducing the cognitive burden on developers.

This step demonstrates the core advantage of AI-driven development: completely offloading the time-consuming and error-prone task of "reading the datasheet" to AI.

Step 2: Issue the UART Communication Requirements

After confirming the pin, the developer provides a complete functional description:

• Use PA10 as the TX pin
• Cyclically send data at a 100-millisecond interval
• Payload: 4 bytes — 0xAA, 0x55, 0x33, 0x88
• Baud rate set to 9600
• Hardware connection: PA10 connected to logic analyzer channel H0

Why Choose 9600 Baud Rate

9600 bps is one of the most classic baud rate settings in serial communication, meaning 9600 bits are transmitted per second. In the UART protocol, transmitting one byte actually requires 10 bits (1 start bit + 8 data bits + 1 stop bit), so at 9600 baud, approximately 960 bytes can be transmitted per second. Reasons for choosing 9600 over higher rates (such as 115200) typically include: excellent compatibility (virtually all devices support it), lower clock precision requirements (allowing greater baud rate error tolerance), and stronger noise immunity (longer signal duration makes it less susceptible to interference). In this case, the requirement of sending 4 bytes every 100ms has extremely low bandwidth demands, and 9600 is more than sufficient while being more stable and reliable.

This instruction contains all the information needed to implement the function, but includes zero code-level description. The developer only needs to know "what I want to achieve," not "how to achieve it."

Step 3: AI Automatically Completes Compilation, Flashing, and Verification

After receiving the instruction, the Agent automatically executes the complete development workflow:

1. Configure the UART data channel — including clock enable, baud rate register calculation, data bits/stop bits settings
2. Write the transmission code — implementing the timed sending logic
3. Compile the project — taking approximately 2 seconds
4. Flash the firmware — automatically downloading to the target MCU
5. Verify results — capturing actual waveforms via logic analyzer and comparing against expected data

Technical Architecture of AI Agent Full-Loop Development

AI full-loop development is not simply code generation — it's an automated system integrating multiple toolchains. A typical AI embedded development Agent needs the following capabilities: access to an MCU datasheet knowledge base (for pin analysis and peripheral configuration), invoking cross-compilation toolchains (such as arm-none-eabi-gcc), controlling programmers (such as J-Link, ST-Link) for firmware download, and operating test equipment (such as logic analyzers) for result capture. Such Agents typically use a Large Language Model (LLM) as the reasoning core, combined with Function Calling or Tool Use mechanisms to invoke external tools. The entire process forms an automated loop of "requirements → code → compilation → flashing → verification," where each stage's output serves as the next stage's input, achieving end-to-end automation.

The entire process requires no human intervention — the AI autonomously completes the full loop from code generation to hardware verification.

Logic Analyzer Verification Results

The data captured by the logic analyzer confirms that the MCU is indeed stably sending the four bytes 0xAA, 0x55, 0x33, 0x88 at a 100ms cycle with a baud rate of 9600, perfectly matching the requirements.

Logic Analyzer: The "Eyes" of Embedded Development

A logic analyzer is an indispensable debugging tool in embedded development, capable of capturing digital signal timing waveforms and performing protocol decoding. Unlike oscilloscopes, logic analyzers focus on logic-level transitions of digital signals, can simultaneously capture multiple channels, and have built-in automatic decoding for common protocols like UART, SPI, and I2C. In this case, the logic analyzer is connected to the PA10 pin via channel H0, capable of real-time capture of every bit transmitted via UART, automatically identifying start bits, data bits, and stop bits, and converting binary waveforms back into actual byte data (such as 0xAA, 0x55, etc.). This hardware-level verification method is more reliable than pure software debugging because it directly observes physical signals, eliminating potential deviations that may exist in software simulation.

The entire development process took less than one minute with zero errors — none of the configuration omissions, baud rate calculation mistakes, or pin conflicts commonly encountered in traditional development debugging.

A New Learning Methodology for AI-Driven Embedded Development

This case reveals an entirely new learning path for embedded development:

From "Reading Datasheets" to "Asking AI"

Traditional learning requires developers to spend significant time familiarizing themselves with MCU architecture first. In the AI-driven model, developers can:

1. Let AI help you understand the MCU — directly ask about pin functions and peripheral characteristics
2. Remember key information — confirm and memorize the pin selections AI provides
3. Design functional requirements — focus on "what to do" rather than "how to do it"

Mindset Adjustment for Beginners

The entire process might leave beginners feeling a "lack of participation" — from issuing instructions to getting results takes less than a minute, seemingly without learning much. But this is precisely the normal mode of future embedded development: after giving instructions, you can move on to other tasks.

Of course, beginners still need to build foundational concepts:

• What is baud rate? Why choose 9600?
• What does a 100-millisecond transmission cycle mean?
• What are the basic principles of serial communication?

These conceptual understandings remain important, but the task of mastering register configurations for each individual MCU can now be entirely delegated to AI.

Conclusion: AI Redefines the Core Competencies of Embedded Engineers

The core value of AI full-loop embedded development lies in liberating developers from tedious low-level configuration, allowing them to focus on system design and functional definition. For a new MCU, AI can accomplish in ten minutes what would take a human days to familiarize from the datasheet.

This doesn't mean embedded knowledge becomes unimportant — rather, the way knowledge is acquired and applied has fundamentally changed — from "memorization-based" to "instruction-based," from "operation-oriented" to "decision-oriented." The core competitive advantage of future embedded engineers will be system architecture capability and requirements analysis ability, not proficiency in register configuration.

Key Takeaways

• AI Agent achieves full-loop UART serial communication development, from instruction to logic analyzer verification in under one minute
• Developers don't need to consult datasheets — AI automatically handles pin analysis, code writing, compilation, flashing, and result verification
• The core advantage of AI-driven embedded development is eliminating the need to study thousand-page datasheets for each MCU
• Beginners still need to build foundational concepts like baud rate and communication cycles, but low-level configuration can be entirely delegated to AI
• The core competency of future embedded engineers will shift from register configuration to system architecture and requirements analysis
