ESP-IDF Extension Integrates AI Agent: Complete Embedded Build, Flash, and Debug with Natural Language

Overview

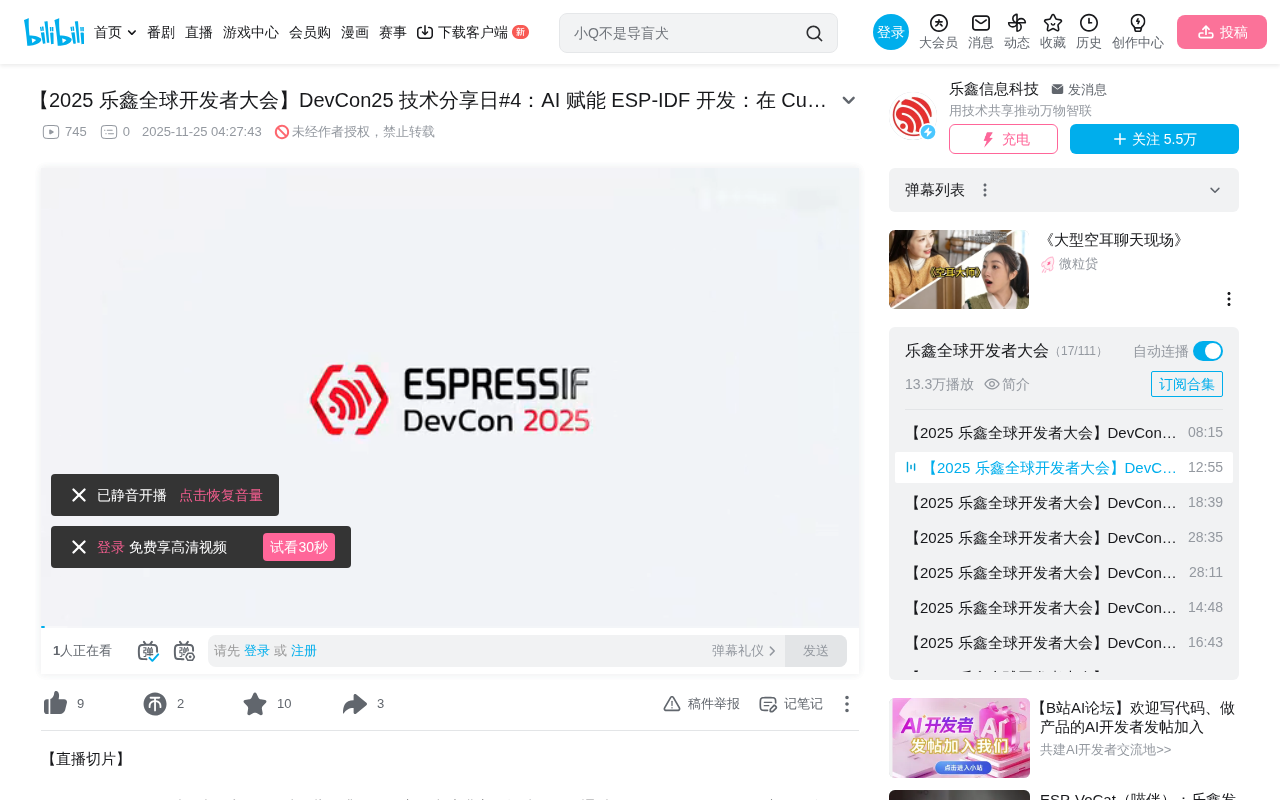

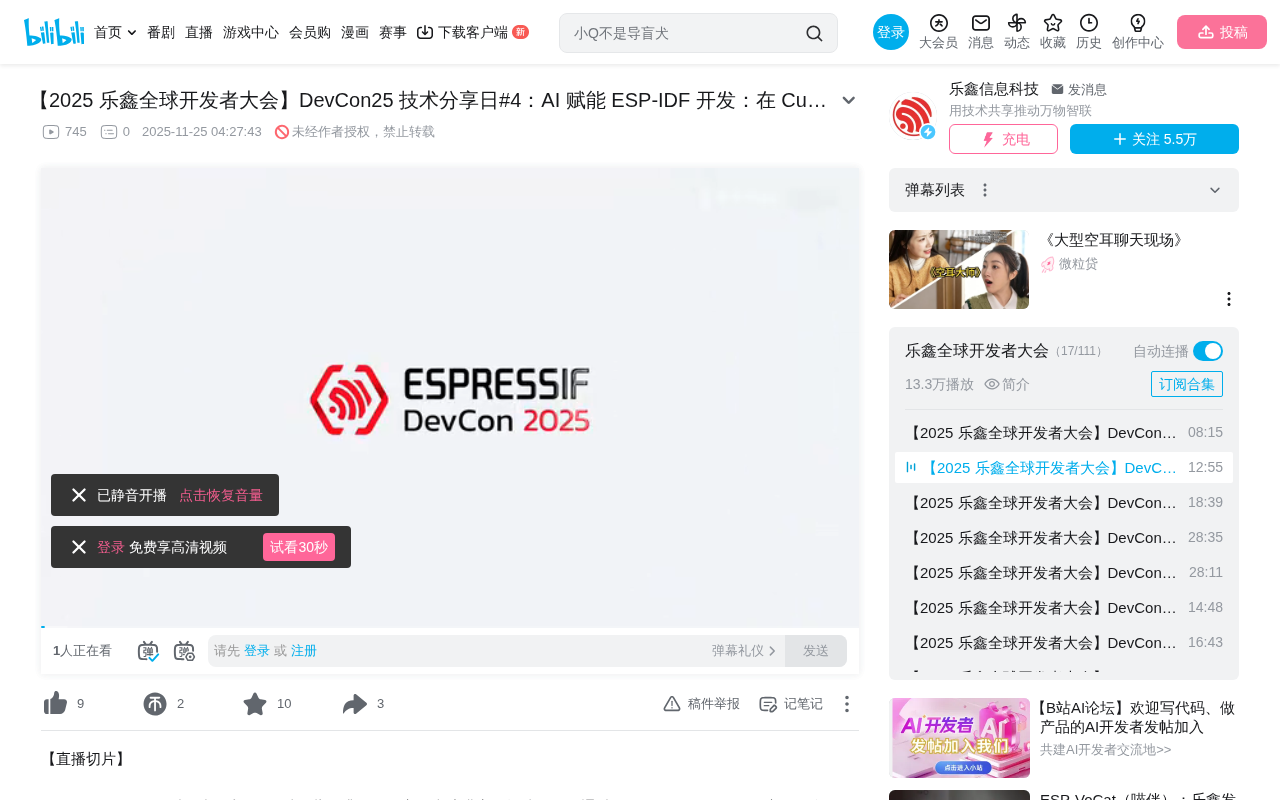

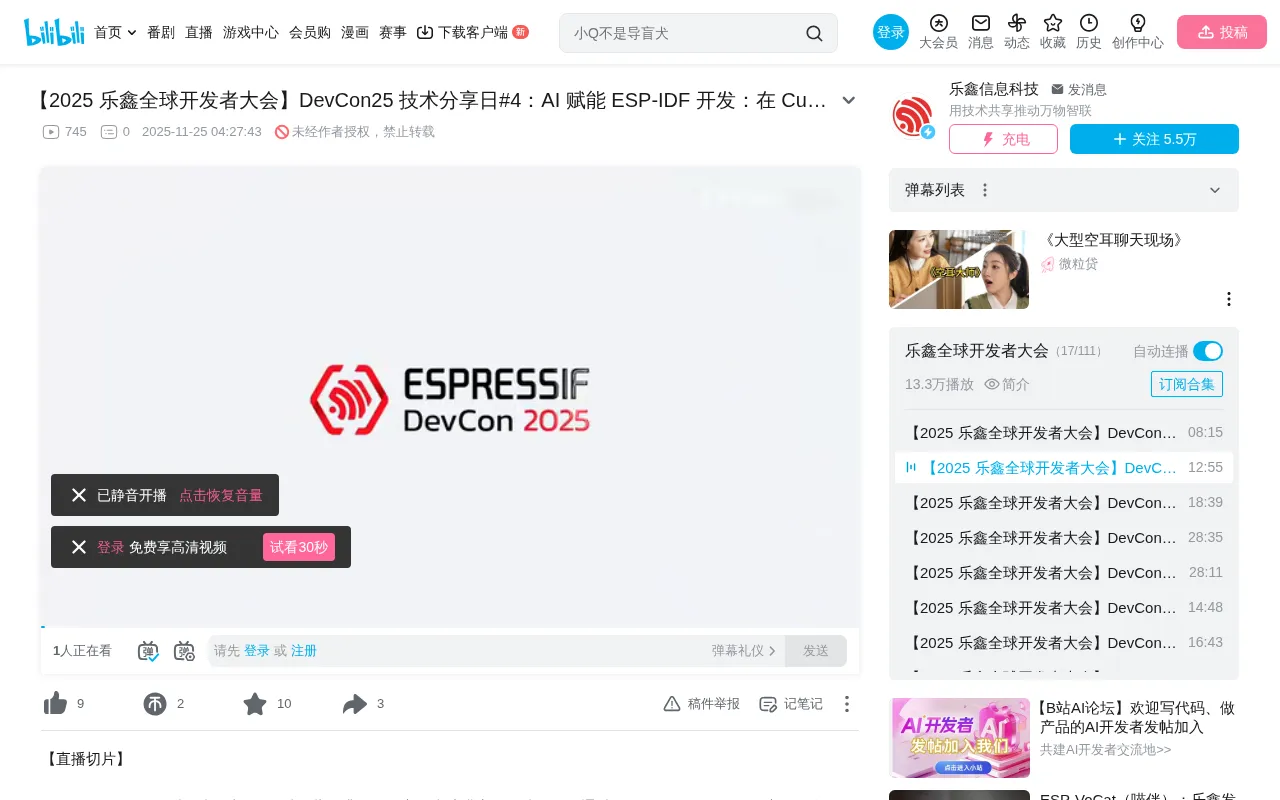

At the Espressif DevCon25 global developer conference, ESP-IDF VS Code extension maintainer Brian Ignacio demonstrated how to use natural language to build, flash, and debug ESP-IDF projects through VS Code Copilot Chat's Agent mode. This feature is built on VS Code's LLM Language Tool API, deeply integrating AI large language models with the embedded development toolchain.

Technical Principles

This feature leverages VS Code's LLM Language Tool API to expose existing ESP-IDF extension capabilities as "tools" to the AI Agent. When users input natural language instructions in Copilot Chat, the LLM parses user intent, invokes the corresponding ESP-IDF commands, and feeds execution output back to the LLM for further analysis.

The LLM Language Tool API is a key capability Microsoft introduced for the VS Code extension ecosystem during 2024-2025. It allows any third-party extension to register its functionality as structured "Tools," each containing a name, description, and parameter schema. This design draws from the OpenAI Function Calling concept—the LLM doesn't directly execute operations but instead judges user intent based on tool descriptions, generates structured invocation requests, and the extension side performs the actual execution. Results are passed back to the LLM as context, forming a "reason-act-observe" ReAct (Reasoning + Acting) loop—the core paradigm of mainstream AI Agent architectures today.

This means the LLM can not only trigger commands but also understand their output—particularly when builds fail, the AI can automatically analyze error causes and provide fix suggestions.

ESP-IDF Toolchain Overview

ESP-IDF (Espressif IoT Development Framework) is the official development framework for ESP32-series Wi-Fi/Bluetooth SoCs, built on the FreeRTOS real-time operating system and using CMake as its build system. A typical development workflow includes: idf.py set-target to set the target chip, idf.py menuconfig to configure SDK parameters (such as flash size, Wi-Fi settings), idf.py build to compile firmware, idf.py flash to program via serial or JTAG, and idf.py monitor to view runtime logs. These commands involve numerous parameter combinations, and build errors often relate to low-level details like partition table layouts and linker script addresses, creating a steep learning curve for embedded development newcomers. The introduction of Agent mode aims to lower this barrier.

Supported Commands

Build and Flash

• Build specific partitions: app, bootloader, partition table
• Multiple flash methods: UART, JTAG, DFU
• Combined commands: build-flash-monitor in one step
• Full clean
• Set target chip

UI and Configuration Tools

• menuconfig (SDK configuration editor)
• Partition table editor
• Component manager
• New project wizard
• Serial port selection, doctor command, erase flash, etc.

Live Demo: AI-Assisted Build Error Debugging

Brian demonstrated a typical scenario: after configuring flash size to 2MB, the project build failed. The AI Agent automatically analyzed the terminal output, identified the error "partition table requires 2.1MB but configured flash is only 2MB," and suggested opening the SDK configuration editor to modify the flash size.

Notably, this illustrates the fundamental difference between Agent mode and regular Copilot Q&A. Regular Copilot provides single-turn responses—user asks, AI answers. Agent mode has multi-step planning and autonomous decision-making capabilities, independently determining execution order, observing command output, and deciding the next action. Throughout the process, the Agent went through a complete reasoning-action chain: "invoke build tool → observe error output → analyze error cause → suggest fix." Since the Agent actually executes system commands, VS Code requires explicit user authorization through a pop-up permission notification to ensure security.

Workflow:

1. Type "build the project" in Chat
2. Confirm the pop-up permission notification
3. Review build output and AI analysis results
4. Execute fixes based on AI suggestions

Users can also use explicit invocation syntax like #ESP-IDF commands build app to precisely specify the operation.

Prerequisites

• Install and configure the ESP-IDF VS Code extension
• Enable VS Code Copilot Chat
• Open an ESP-IDF project
• Open the chat panel via View > Chat

Summary

This integration abstracts tedious command-line operations in embedded development into natural language interactions, delivering particular value in error diagnosis scenarios. Developers don't need to memorize complex build parameters or manually analyze lengthy compilation logs—the AI Agent can complete the entire process from execution to diagnosis end-to-end.

From a broader industry perspective, this represents an important direction in AI-powered development tools: not replacing developers in writing code, but offloading toolchain operational complexity to AI, letting developers focus on business logic. Similar integrations are progressing in parallel across Docker, Kubernetes, cloud platform CLIs, and other domains.

Key Takeaways

• The ESP-IDF VS Code extension integrates AI Agent via LLM Language Tool API, supporting natural language triggers for build, flash, and other commands
• AI can not only execute commands but also analyze build error output and provide fix suggestions
• Supports both explicit invocation and natural language interaction modes
• Covers the complete development workflow including build, flash, configuration, and debugging
