Core Principles of the Transformer Architecture: A Deep Dive into Self-Attention Mechanisms and Engineering Optimizations

Introduction: Why You Need to Truly Understand Transformers

In AI large model interviews, "Please describe the design philosophy of the Transformer architecture" is almost guaranteed to come up. Yet most people can only answer "because it's fast and effective." The moment an interviewer follows up with "Why is it fast? How does it achieve both speed and accuracy?" they immediately freeze.

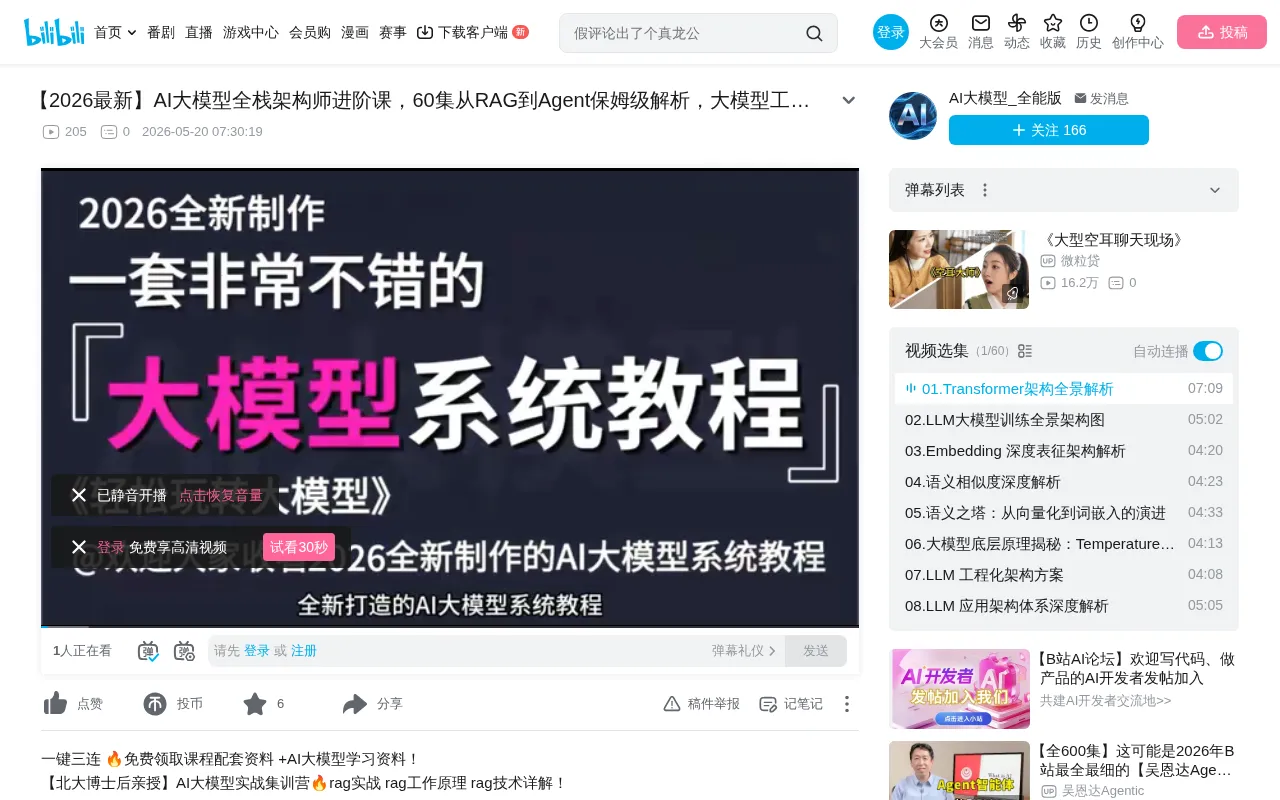

This article is based on the core content of a systematic large model tutorial series on Bilibili. It provides a complete walkthrough of Transformer's design philosophy, core mechanisms, and engineering challenges, helping you build a clear knowledge framework from theory to practice.

What Did Transformer Replace? The Fatal Flaws of RNN/LSTM

Two Core Bottlenecks of RNN/LSTM

Before Transformer appeared, the dominant forces in NLP were RNN (Recurrent Neural Networks) and LSTM (Long Short-Term Memory networks). They work similarly to how humans read word by word — they must process the first word before the second, and the second before the third. The next word cannot begin processing until the previous one is finished.

RNN was first proposed by Elman in 1990. Its core idea is to pass information from one time step to the next through a hidden state, forming a kind of "memory" capability. However, when sequences exceed 20-30 time steps, gradients decay exponentially during backpropagation (vanishing gradients) or explode, making it impossible for the model to learn long-range dependencies. LSTM was proposed by Hochreiter and Schmidhuber in 1997, introducing three gating mechanisms — forget gate, input gate, and output gate — to control information flow, theoretically alleviating the vanishing gradient problem. But in practice, LSTM still performs poorly on sequences exceeding 500 tokens, and its sequential nature means a sequence of length N requires N time steps to complete forward propagation, completely unable to leverage the parallel computing power of thousands of CUDA cores on modern GPUs.

This sequential computation paradigm creates two fatal problems:

1. Speed bottleneck: No matter how many GPUs you have, computations must queue up sequentially, leaving hardware utilization far below capacity
2. Long-range forgetting: As sentences grow longer, information from the beginning has already decayed by the time the model reaches the end — this is the "vanishing gradient" problem

Transformer's Parallel Computing Advantage

Transformer's core design philosophy can be summarized in one phrase: I want it all. It abandons recurrent structures entirely, feeding an entire sentence into the model simultaneously. Whether the sentence is 10 words or 100 words, it processes all tokens at once — this is parallel computation.

More critically, the interaction distance between any two words (even one at the beginning and one at the end) is always "one step." There is no information decay, no forgetting. This is the fundamental reason Transformer broke through temporal limitations and replaced RNN/LSTM.

The Transformer architecture was first proposed by the Google Brain team in their 2017 paper Attention Is All You Need. The paper's title itself declared a revolutionary idea: attention mechanisms alone are sufficient to build powerful sequence models, without any recurrent or convolutional structures. Originally designed for machine translation, it achieved 28.4 BLEU on the WMT 2014 English-German translation task, setting a new record while requiring only a fraction of the training time of previous state-of-the-art models. More importantly, the architecture's generality far exceeded the authors' initial expectations — it later became the foundational backbone for BERT, GPT, T5, and virtually all modern language models.

Transformer Macro Architecture: The Encoder-Decoder Dual-Tower Structure

The standard Transformer is an Encoder-Decoder dual-tower structure:

• Encoder: Like a reading comprehension master, responsible for understanding input text and extracting semantic features
• Decoder: Like a writer, taking the encoder's understanding and generating output word by word

In terms of architectural details, the Encoder consists of N identical stacked layers (N=6 in the original paper), each containing a multi-head self-attention sublayer and a feed-forward neural network sublayer, with residual connections and layer normalization between both sublayers. The Decoder is similarly composed of N stacked layers, but each layer adds an additional Cross-Attention sublayer to "attend to" the Encoder's output. Notably, the self-attention in the Decoder uses a causal mask to ensure that when generating the t-th token, only the previous t-1 tokens are visible, preventing information leakage. This design makes the Decoder naturally suited for autoregressive generation tasks.

One important detail: mainstream models in the industry have shown clear differentiation:

Architecture Type	Representative Applications	Typical Models
Decoder-only	Text generation (GPT series)	GPT-4, LLaMA, Qwen
Encoder-only	Text classification/understanding	BERT, RoBERTa
Encoder-Decoder	Translation/summarization	T5, BART

Today's most popular generative large models (like ChatGPT) typically use only the Decoder portion, as they focus specifically on the task of "writing."

The Essence of Self-Attention: QKV Explained in Detail

Understanding QKV Through a Library Analogy

Self-Attention is the soul of Transformer. Many people are scared off by the QKV mathematical formulas, but the logic is actually very intuitive. Think of it as searching for books in a library:

• Query (Q): The reading list in your hand — what books you're looking for, your search request
• Key (K): The index labels on the bookshelves — the classification tags for each book
• Value (V): The actual content inside the books

The attention computation process works like this: take your Q (reading list) and match it against the K (labels) on the shelves. Books with high match scores get more of your attention for their V (content); books with low match scores get less attention or are ignored.

How Self-Attention Works

In Transformer, every word in a sentence generates its own Q, K, and V vectors. Then each word takes its Q and matches it against all other words' K vectors — "whoever is most relevant to me gets my attention."

From a mathematical perspective, Q, K, and V are obtained by projecting the input vector through three different linear transformation matrices (W_Q, W_K, W_V). The attention score formula is Attention(Q,K,V) = softmax(QK^T / √d_k)V, where √d_k is a scaling factor to prevent dot product values from becoming too large and causing softmax gradient vanishing. Multi-Head Attention splits Q, K, and V into h subspaces (h=8 in the original paper), computes attention independently in each subspace, then concatenates the results. The benefit is that the model can simultaneously attend to different types of semantic relationships — for example, one head focuses on syntactic structure, another on semantic similarity, and yet another on coreference relations.

This is the essence of self-attention: letting the model automatically learn the association strength between words, rather than relying on manually designed rules.

Three Major Engineering Challenges and Their Solutions

Understanding the principles is only the first step. Actually running Transformer in production environments requires solving three key engineering problems:

Challenge 1: Memory Explosion — The O(N²) Complexity Problem

Self-attention needs to compute pairwise relationships between all words. If the sequence length is N, the computational cost is N². For a text with 10,000 tokens, the attention matrix contains 100 million elements, causing memory to immediately overflow.

Solution: Flash Attention

This is currently the most mainstream optimization approach, proposed by Tri Dao et al. in 2022. Its core insight is that the bottleneck of standard attention implementation isn't computational cost, but memory access. GPU compute units (like Tensor Cores) are extremely fast, but the latency of reading from and writing to HBM (High Bandwidth Memory) is relatively high. The standard implementation requires writing the complete N×N attention matrix to HBM and reading it back, while Flash Attention uses a tiling strategy, splitting computation into small blocks that are completed entirely in SRAM (on-chip cache with small capacity but extremely high bandwidth), avoiding repeated reads and writes of intermediate results. It also leverages an online softmax algorithm, making the tiled computation results mathematically equivalent to the standard implementation. Flash Attention 2 further optimizes parallelism strategies and work distribution, achieving 72% of theoretical peak FLOPS on A100 GPUs. Without changing computation results, it improves attention computation speed by 2-4x while significantly reducing memory usage. Currently, virtually all mainstream training frameworks have integrated Flash Attention.

Challenge 2: Poor Length Extrapolation — Limitations of Position Encoding

If a model only sees texts of 2048 tokens during training, and suddenly receives a 10,000-token input during inference, the model will likely output gibberish. This is because traditional position encodings cannot generalize to unseen lengths.

Solution: RoPE (Rotary Position Embedding)

RoPE was proposed by Su Jianlin in 2021. Its core idea is to encode positional information as rotation operations in vector space. Specifically, for a vector at position m, RoPE treats every two dimensions as a 2D plane and rotates them by an angle proportional to the position. The elegance of this design lies in the fact that when vectors at positions m and n are dot-producted, the result depends only on their relative distance (m-n), naturally possessing the properties of relative position encoding. Compared to the sinusoidal position encoding (absolute position encoding) in the original Transformer paper, RoPE performs better in length extrapolation. Combined with interpolation techniques like YaRN and Dynamic NTK, it can extend a model trained on 4K context to 128K or even 1M context windows. This is the key technical foundation enabling Claude, GPT-4 Turbo, and other models to support ultra-long contexts. Even when facing lengths unseen during training, it maintains good performance.

Challenge 3: Inference Speed Bottleneck — KV Cache Bloat

Large models generate text token by token. Each time a new token is generated, the K and V vectors of all previous tokens must be cached (the KV Cache). When concurrent users increase, KV Cache quickly consumes all available memory.

Solution: MQA / GQA (Grouped-Query Attention)

• MQA (Multi-Query Attention): All attention heads share the same set of K and V, drastically reducing cache size
• GQA (Grouped-Query Attention): A compromise approach that groups attention heads to share KV, balancing quality and efficiency

In standard Multi-Head Attention (MHA), each attention head has independent K and V projections. For a 32-head model with dimension 4096, each token's KV Cache needs to store 32×2×128=8192 floating-point numbers. With a sequence length of 4096 and batch size of 32, KV Cache alone requires tens of gigabytes of memory. MQA goes to the other extreme, with all heads sharing one set of KV — while saving 32x memory, model quality noticeably degrades. GQA was formally proposed by Google in a 2023 paper, dividing 32 query heads into several groups (e.g., 8 groups), with each group sharing one set of KV. Experiments show that GQA approaches MQA in inference speed while maintaining model quality nearly on par with MHA. LLaMA 2's 70B version, Mistral 7B, Gemma, and other models all adopt GQA — it has become the de facto standard in current large model architecture design.

Interview Summary: Three Sentences to Summarize Transformer's Core Value

If an interviewer asks you to summarize Transformer's core value as concisely as possible, here's how to answer:

1. Parallel computation: Unleashes hardware's computational potential, with training efficiency far exceeding RNN
2. Attention mechanism: Precisely captures long-range semantic dependencies, solving the information forgetting problem
3. Ecosystem scalability: Combined with engineering optimizations like Flash Attention, RoPE, and GQA, it supports the era of trillion-parameter large models

Final Thoughts

Understanding Transformer isn't just about passing interviews — it's the foundation for understanding the entire large model ecosystem. From RAG to Agents, from fine-tuning to deployment, all higher-level applications are built on this architecture. Only by mastering the underlying principles can you make correct decisions in technology selection and troubleshooting.

For those who want to systematically learn about large models, I recommend following the path of "principle understanding → code implementation → engineering optimization → project practice," avoiding staying at the surface level of mere API calls.

Key Takeaways

• Transformer completely replaced RNN/LSTM's sequential processing paradigm through parallel computation and self-attention mechanisms, solving both the speed bottleneck and long-range forgetting problems
• The essence of self-attention is letting each word automatically learn its association strength with other words through QKV matching, similar to searching for books in a library
• Engineering deployment faces three major challenges — memory explosion, length extrapolation, and inference speed — solved respectively by Flash Attention, RoPE, and GQA
• Current mainstream generative large models use Decoder-only architecture, while text understanding models mostly use Encoder-only architecture
• Mastering Transformer's underlying principles is essential for understanding higher-level applications like RAG and Agents, as well as for model fine-tuning and deployment
