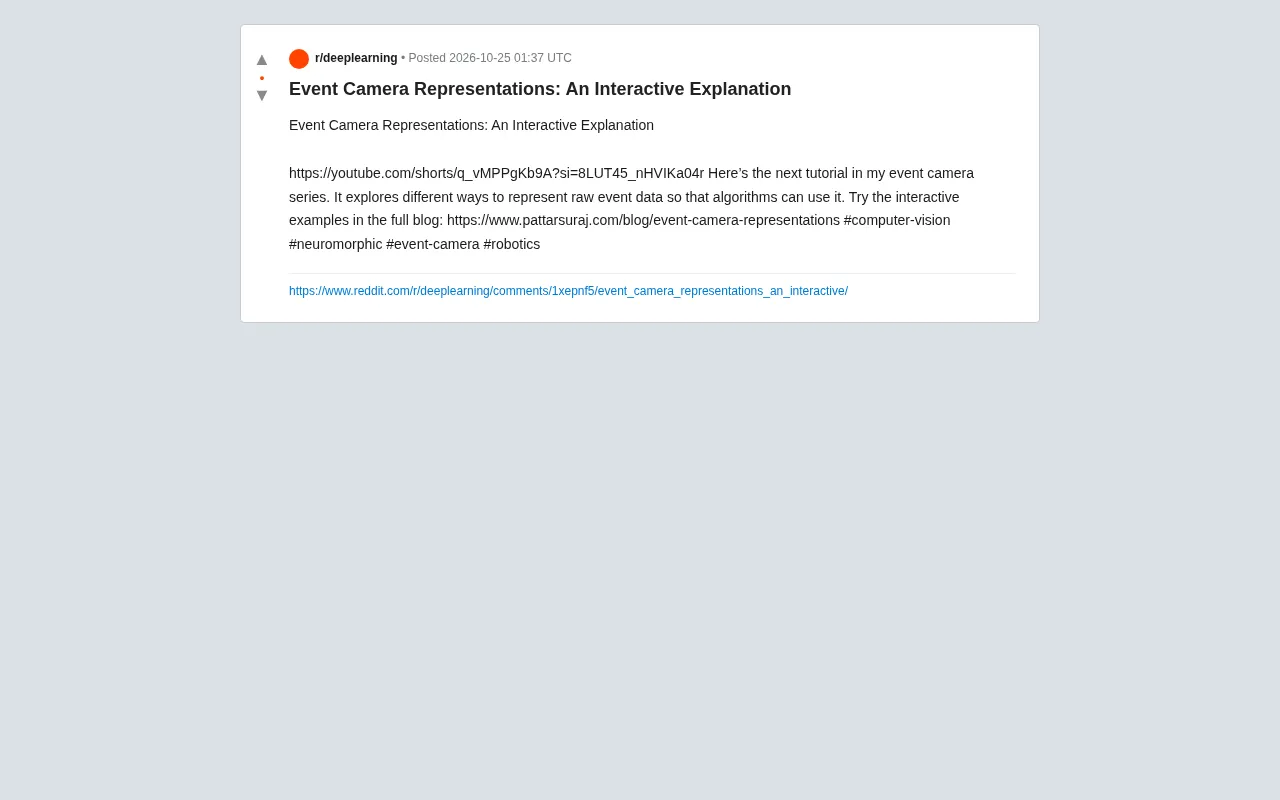

Event cameras are moving from the lab into real-world scenarios such as robotics and autonomous driving. Unlike traditional frame cameras, they output an asynchronous stream of pixel-level brightness-change events, a completely different data format. How to transform these raw events into representations usable by algorithms is a key step for practical deployment. Recently, a developer published a series of tutorials on their blog and YouTube Shorts, the latest of which specifically explores various data representation methods for event cameras and provides interactive examples.

Why Event Camera Data Representations Matter

Event cameras do not output full frames; instead, when the brightness change of a pixel exceeds a threshold, they generate an event (containing a timestamp, pixel coordinates, and polarity). This data preserves extremely high temporal resolution (microsecond level) and dynamic range, but it is sparse and unstructured. Directly processing raw event streams is very difficult for most computer vision algorithms. Therefore, event data must be converted into some intermediate representation, such as event frames, time surfaces, voxel grids, etc., to fit existing deep learning or traditional vision pipelines.

The tutorial points out that different representation methods trade off between preserving information (such as temporal precision and spatial detail) and computational efficiency. Understanding these trade-offs is the first step in designing event camera applications.

Neuromorphic Vision refers to the visual sensing and computing paradigm inspired by the working mechanisms of biological retinas. Event cameras are a typical hardware representative of this field: their pixels independently detect brightness changes and asynchronously output spikes rather than sampling at a fixed frame rate. This paradigm shift means that subsequent processing algorithms also need to adapt to sparse, asynchronous data streams rather than traditional dense matrix operations. Understanding the basic concepts of neuromorphic vision—event-driven, sparse computation, and high temporal resolution—helps grasp why event camera data representations become the core bridge connecting sensors and algorithms.

Common Event Data Representation Methods

The tutorial introduces several mainstream representations, each accompanied by interactive examples for readers to intuitively experience.

Event Frame

Events within a time window are accumulated into a two-dimensional image, usually with two channels representing positive and negative polarity respectively. This representation is closest to traditional frames and can be directly fed into a CNN. However, the drawback is that the temporal order of events is lost, and the choice of window size has a significant impact.

Time Surface

Each pixel records the timestamp of the most recent event, forming a "time surface" image. It preserves temporal information and is sensitive to motion. The interactive examples in the tutorial show how to convert timestamps into feature maps using an exponential decay kernel.

Exponential Decay Kernel is a key mechanism in time surface representations. Since each pixel only records the timestamp of the most recent event, directly using timestamp values would lose discriminability as absolute time grows. The exponential decay kernel maps time differences to decayed feature values: events closer to the current moment have higher weights, and those farther away have lower weights. This design allows the time surface to retain the recency of event occurrences while avoiding unbounded growth of timestamp values, and it enhances the representation's sensitivity to recent motion, making it suitable for tasks such as motion estimation.

Voxel Grid

The temporal dimension is discretized, and events are assigned to a three-dimensional grid (x, y, t), then projected along the time axis or directly used as 3D input. This method better preserves spatiotemporal structure, but has higher computation and storage overhead.

According to the blog, these representations each have suitable scenarios. For example, event frames are suitable for object detection in static scenes, time surfaces are suitable for motion estimation, and voxel grids are used for tasks requiring fine spatiotemporal information.

TONIC (The Online Neuromorphic Intelligence Collection) is an open-source dataset and tool library for event cameras and neuromorphic computing. It provides a unified interface for multiple public event camera datasets and includes built-in implementations of common representations such as event frames, time surfaces, and voxel grids. Using TONIC allows rapid loading and preprocessing of event data, avoiding repeated implementation of low-level conversion logic and thereby accelerating algorithm prototyping and comparative experiments.

Interactive Learning Experience

A major highlight of the tutorial is the interactive examples. Readers can adjust parameters (such as time window size and decay rate) in the browser and observe changes in the representation results in real time. This hands-on approach is more intuitive than simply reading formulas. The author demonstrates some interactive effects in YouTube Shorts and guides viewers to try them in the full blog.

This teaching approach lowers the learning barrier in the event camera field. For developers new to neuromorphic vision, interactive tutorials can quickly build intuition.

Implications for Developers

The event camera ecosystem is still developing rapidly. When choosing a representation method, it is necessary to consider the specific task, hardware resources, and precision requirements. The tutorial author suggests starting with simple event frames and gradually trying more complex representations. At the same time, open-source tools (such as the Metavision SDK and the TONIC dataset library) provide ready-made implementations that can accelerate prototype development.

As neuromorphic computing and event camera hardware mature, related algorithms and representation methods will continue to evolve. Keeping up with such tutorials helps developers stay abreast of progress in the field.

For more details and interactive examples, visit the author's blog: pattarsuraj.com/blog/event-camera-representations.
